LED Heliport-Helideck Elevated Light IP66 360 Degree Adjustable Ultra-High Intensity Light Standard Airport

Brand Name : MF

Model Number : MF-HP-E

Certification : CCC, CE, RoHS

Place of Origin : China

MOQ : 1

Price : USD189~252/PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 PCS/Month

Delivery Time : 7~21 days

Packaging Details : Carton

Power : 5W

Warranty : 5 years

IP Rating : IP66

Voltage : DC48V Andac(110-240VAC), DC12V

Light Source : With Light Source

Available Colors : Green, Yellow, White, Red, Blue, IR

Horizontal Output(Degrees) : 360

Operation Mode : 24hours Operation

LED Life Experience(Hours) : >100,000

Base Material : Powder-Coated Die-Casting Aluminum

Product Life Expectancy : ≥10years

Humidity : 10~90%

Flash Characteristics : Steady Burning

Specification : 236× 236× 215

Production Capacity : 10000PCS/Month

Body Material : UV Protected Polycarbonate

Weight(Kg) : 1.9 or 1.5

Wind Speed : 80m/S

Intensity(CD) : Icao Standard

Transport Package : Carton Box

Contact Now

Product Description

Factory Price IP66 360 Degree Adjustable Ultra-High Intensity Light ICAO Standard Airport Light LED Heliport-Helideck Elevated Light

Product Feature

LED Heliport-Helideck Elevated Light IP66 360 Degree Adjustable Ultra-High Intensity Light Standard Airport

The MF-HP-E Serial Heliport Elevated lights should not surpass a height of 25 cm for both surface-level and elevated heliports, and should not exceed 15 cm in height for helidecks. A fragile coupling is incorporated into the base connection of the heliport lights, ensuring that if an aircraft accidentally hits the light, the base will break instantly to prevent further damage. These lights can be utilized as FATO (Final Approach and Take-Off) lights, TLOF (Touchdown and Lift-Off) lights, and Taxiway lights.

Products Parameters

SPECIFICATIONS	MF-HP-E Serial LED Heliport-Helideck Elevated Light
Light Characteristics
LightSource	Ultra high intensity LED
Available Colors	Green,Yellow,White,Red,Blue,IR
Intensity(cd)	ICAO standard
Horizontal Output(degrees)	360
Vertical Divergence(degrees)	ICAO standard
Flash Characteristics	Steady burning
Operation Mode	24hours operation
LED Life Experience(hours)	>100,000
Electrical Characteristics
Operaing Voltage	DC48V andAC(110-240VAC),DC12V
Power(W)	5
Circuit Protection	Integrated
Physical Characteristics
Body Material	UV protected Polycarbonate
Base Material	Powder-coated Die-casting aluminum
Mounting	140×140×012(Installed on heliport) 112×112×012(Installed on helideck)
Dimension(mm)	190×165×166(Installed on heliport) 173×133×102(Installed on helideck)
Weight(kg)	1.9 or 1.5
Product Life Expectancy	≥10 years
Environmental Factors
Ambient Temperature(C)	-55~70
Humidity	10~90%
Wind Speed	80m/s
Waterproof	IP66
Compliance
ICAO	ICAOAnnex 14 Volume ll Heliports 5.3
Options Available
Infrared LED compatible for NVG(Night VisionGoggles) VHF Pilot to GroundRemote Control Light intensity adjustable

Model Confirmation
Photometric
Configuration

Electrical

1. High-intensity CREE LED as light source saving powerconsumption and maintenance, 95% less power than equivalentincandescent light
2. Power supply available in AC(110-240VAC) and DC48V, DC12Vand other voltage is optional
3. LED power supply board includes short circuit and open circuitprotection

Physical

1. Unique designed Glass lens for converging light
2. Powder coated bright yellow color base make better visibility
3. Base material is die casting aluminum which has strong corrosionresistance, Shock and Vibrations protection.

Optional

1. Infrared LED for pilot using NVG(Night Vision Goggles)
2. Controller for power supplying and turn ON/OFF light
3. VHF pilot to ground remote control
4. Light intensity adjustable

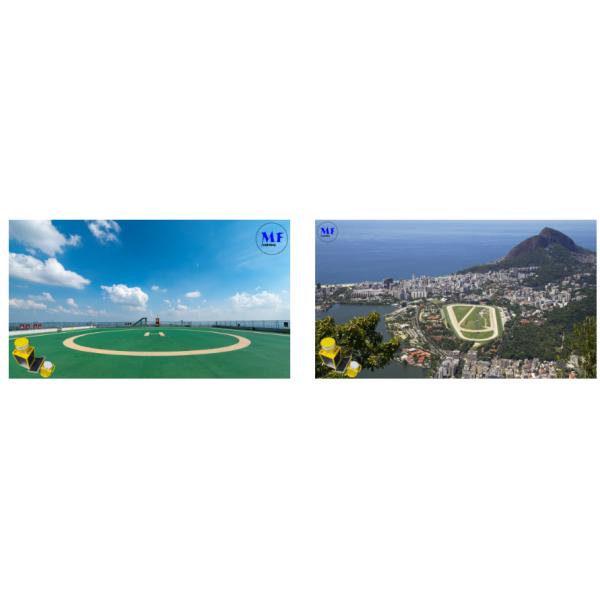

Product Applications

1. Helipad/Heliport TLOF Areas: Ideal for illuminating touchdown and lift-off zones, ensuring clear visibility for aircraft operations.
2. Heliport FATO Areas: Specifically designed to meet the lighting needs of final approach and take-off areas, enhancing safety and efficiency.
3. Helipad Runway: Clearly indicates the direction and location of the helipad runway, guiding aircraft movements.
4. Helipad Taxiway: Provides essential lighting and guidance for safe taxiing operations on the helipad.
5. Aiming Point Light: Serves as a luminous target point for approaching and departing aircraft, facilitating precise landings and take-offs.
6. Helipad/Heliport Lighting on Building Roofs: Offers necessary lighting for helipad operations conducted on rooftops of buildings, ensuring safe and efficient aircraft movements.
7. Helipad Taxiway Light (TA(L)) Areas: Features blue lighting to enhance navigation and safety on the taxiway, making it easier for pilots to distinguish taxiway paths.

LED Heliport-Helideck Elevated Light IP66 360 Degree Adjustable Ultra-High Intensity Light Standard Airport

Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory. Our company specializes in the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology. Our team of skilled professionals is dedicated to providing customers with the best LED lighting products and services. At Ming Feng Lighting Co., Ltd., we pride ourselves on our commitment to quality and customer satisfaction. Whether you are looking for residential or commercial LED lighting solutions, we have the expertise and resources to meet your needs

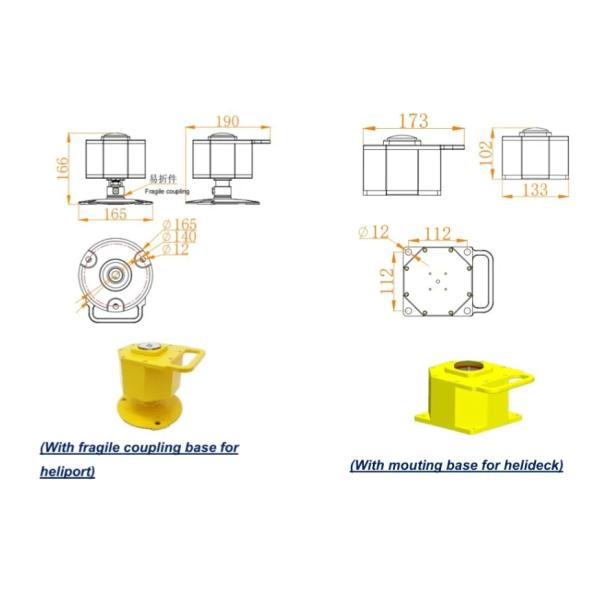

Product Dimmensions

LED Heliport-Helideck Elevated Light IP66 360 Degree Adjustable Ultra-High Intensity Light Standard Airport

Packaging & Shipping

LED Heliport-Helideck Elevated Light IP66 360 Degree Adjustable Ultra-High Intensity Light Standard Airport

FAQ

Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
